RSD106

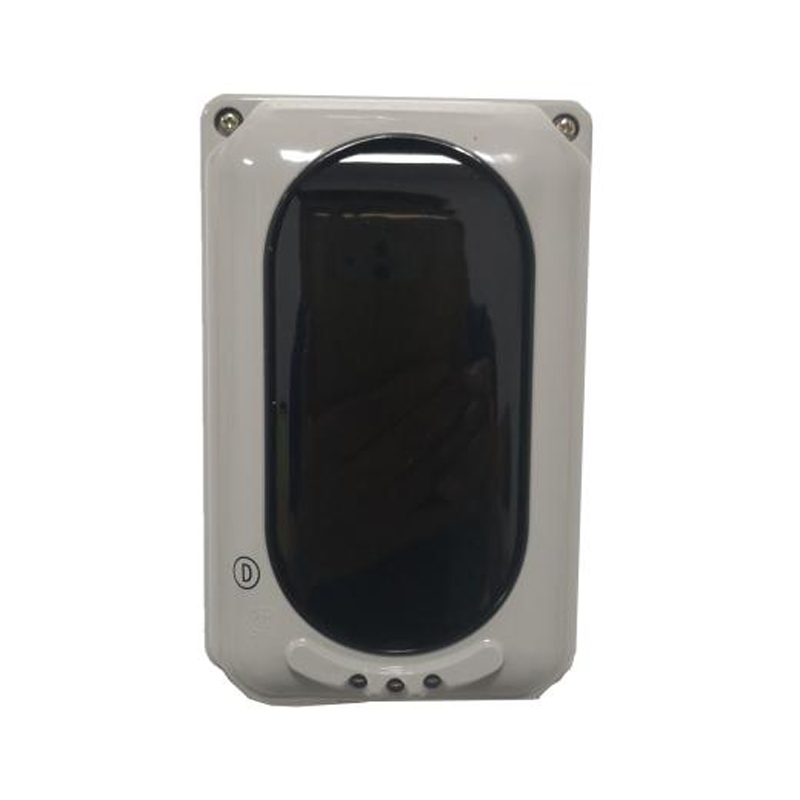

The detector is a conventional beam smoke detector, which must be used together with a reflector.
The number of reflector(s) to be used (one or four) depends on the distance from the detector.With excellent built-in microprocessor, the detector has trong ability of analysis and judgment. The detector can automatically carryout system adjustment, compensation of variation of ambient data, and judgment of fire and fault through fixed algorithm, and indicate these states by LED and signal output terminals. With new and reasonable design, attractive appearance, flexible adjustment and alignment method it’s easy to install and adjust.
The detector is applicable to historical buildings, warehouses, large storages, shopping malls, museums etc, as well as places where slight smoke particles exist.
※ Operating Voltage： 20 V to 28 V DC
※ Current Parameters Standby:23mA Commission:40µA Alarm:33mA
※ Beam Sensor Sensitivity [via Encoder]： Level 1: 2.6 dB High Sensitivity
Level 2: 3.4 Medium Sensitivity
Level 3: 4.8 dB Low Sensitivity
※ Beam Pathway Length [via Encoder]: Span 1: 8 to 20 meters Short Path
Span 2: 20 to 40 meters Short Path
Span 3: 40 to 70 meters Normal Path
Span 4: 70 to 100 meters Long Path
※ Beam Path Angle ±0.5angle
※ Directional
※ Alignment Guide Laser Beam Pointer
※ Digital Display Guide Nixie Tube
※ LED Indicator Guide Red: Fire ; Yellow: Fault ; Green: Alignment
※ Reset Time Less than 2 Second
※ Relay Capacity [Fire & Fault] Normally Open/ 2.0 A; 30 VDC

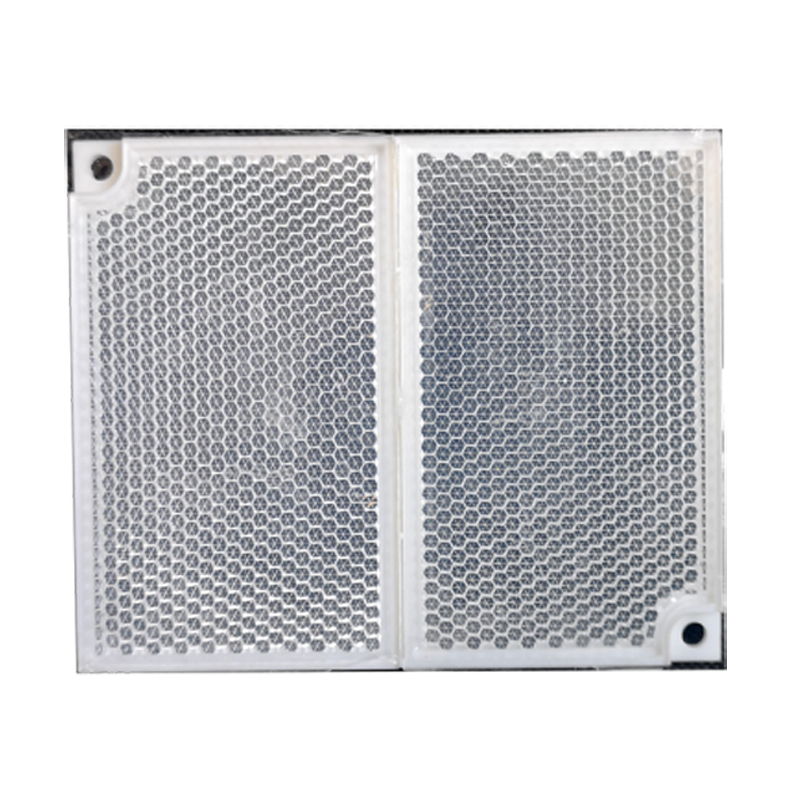

※ Accessories:Mounting bracket/Mirror Reflector x4pcs
※ Physical
Material / Colour ABS / White
Dimension / Weight L:190.87 x W:126.87 x H:91.96 mm / 440 gm
Weight 0.130 Kg with base
※ Environmental
Operating Temperature Range:-10°C to 50°C (14°F to 122°F)10
Protection rating: IP30 [IP66 glue seal]
Humidity 0 to 95% Relative Humidity, Non condensing
