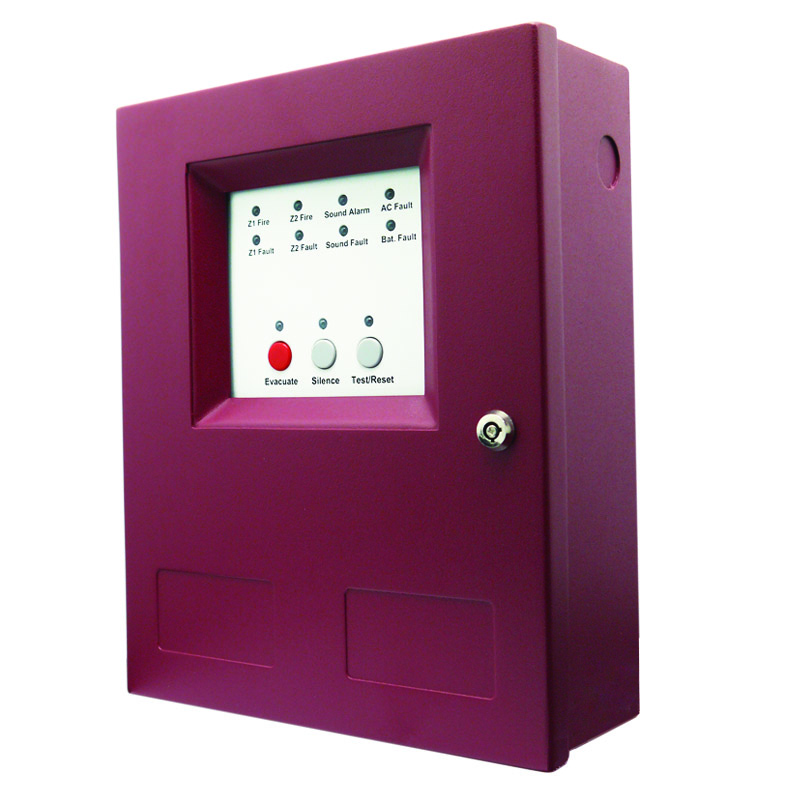

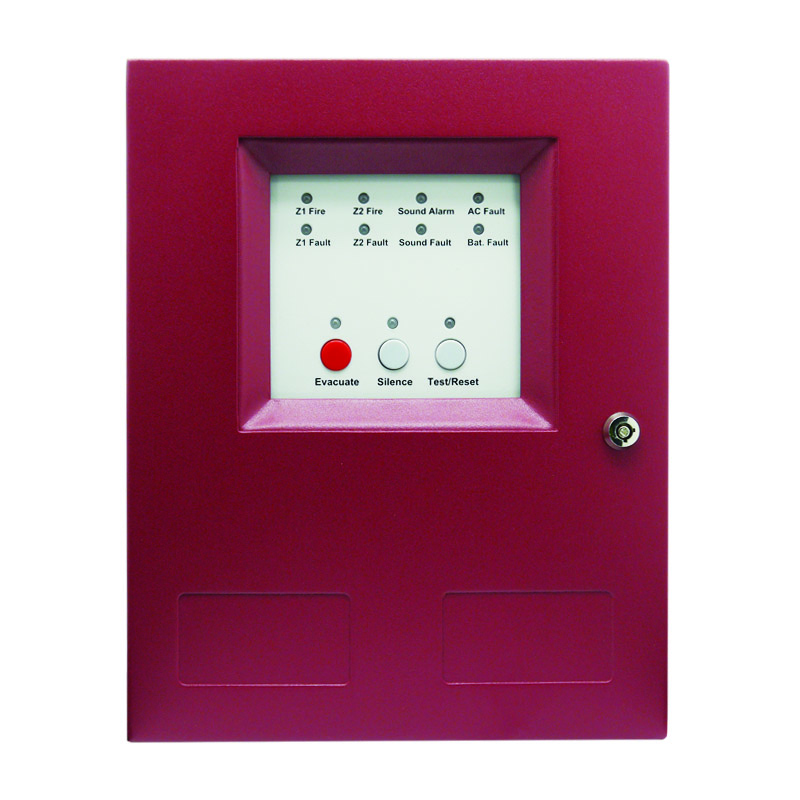

CK1002
The 2 zones panel is designed to meet the requirements of EN54 Parts 2 & 4.
The fire alarm control panels （2 Zones) provide all of the sophisticated features required of a leading edge conventional fire alarm system along with the simple operation and efficient installation methods demanded by both installers and building users.
A comprehensive range of auxiliary devices is available to operate with the fire control panels including optical, ionization, photoelectric, photoelectric-thermal and heat detectors.
Each of the system components has been specifically designed to operate as part of the system. This provides assurance that the control panel, smoke detectors, interface devices and the ancillary components are all fully compatible with one another and that the full range of system functionality is supported by each device.
2 conventional input zones.
1notification appliance circuits (NAC) with built-in synchronization for ANSI 3.41and Gentex.
The panel comes with a 2 amp power supply.
Dedicated alarm and trouble relays.
1 RS485 can be able to connect the other panel.
Housed in a 205mm W x 258mm H x 81mm D metal enclosure.
Enclosure supports two 12V, 4Ah backup batteries.
The panel can be used independently or connect by RS485.
|
Primary AC |
120VAC 50/60 Hz Power supply rating |
|
|
240VAC 50/60 Hz |
|
Power supply rating |
2 Amps @ 24VDC |
|
Maximum Battery Charging Current |
0.98 Amps @ 26VDC |
|
Initiating Device Circuits 2 Zones |
Alarm Zone 2 |
|
Normal Initiating Operating Voltage |
23VDC, Maximum 26VDC, regulated |
|
Normal Quiescent Current (normal status) |
<50mA |
|
Alarm Current (not include the others) |
<150 mA |
|
Short Circuit Initiating Current (per zone) |
35mA Maximum |
|
Maximum Initiating Resistance (per zone) |
10 ohms |
|
Initiating End-of-Line Resistor |
4K7 ohms, 1/2W 5% |
|
Standby Detector Current (per zone) |
4mA maximum |
|
Maximum Detector Count (per zone) |
30 detectors |
|
Initiating Cabling Type |
18AWG Twisted Shielded pair (14 – 18 AWG) |
|
Detector Base Impedance |
430 ohms |
|
Notification Appliance Circuits |
1 NACs, Special Application |
|
Maximum NAC Current Rating |
1 Amp maximum per circuit |
|
NAC Operating Voltage |
26VDC Nominal, 30VDC Maximum |
|
NAC End-of-line Resistor |
1N4007 Diode |
|
FAULT Relay rating |
2A & 30VAC, resistive |
|
Alarm( Auxiliary ) Relay rating |
2A & 30VAC, resistive |
