CK1000 Series

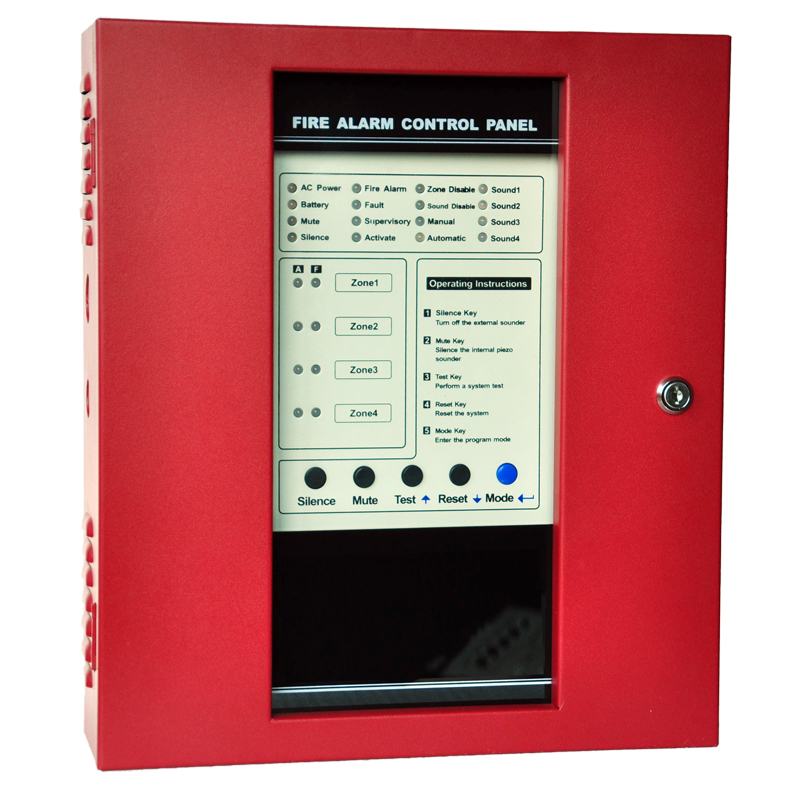

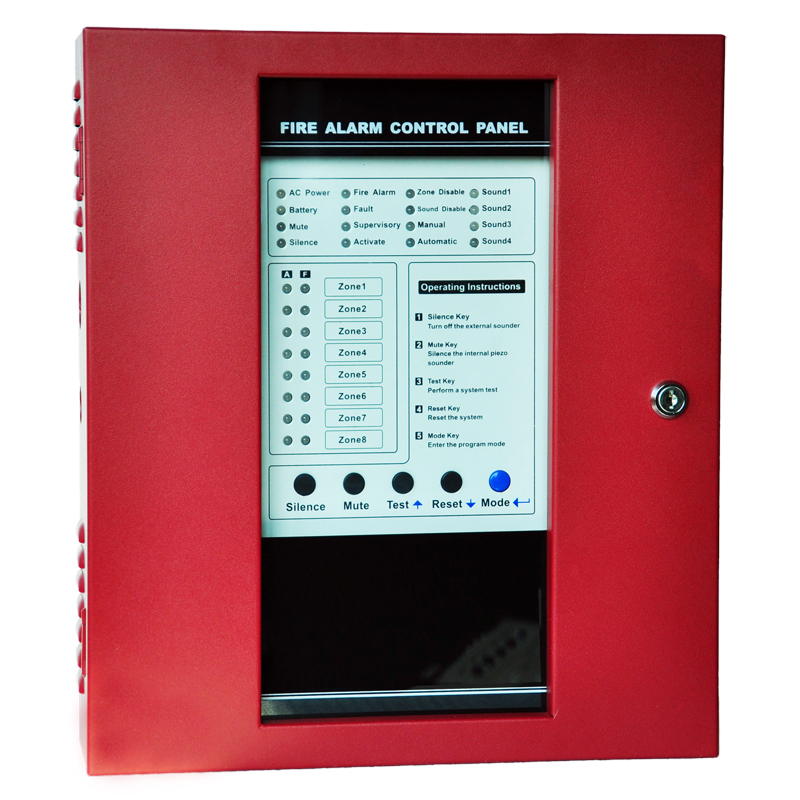

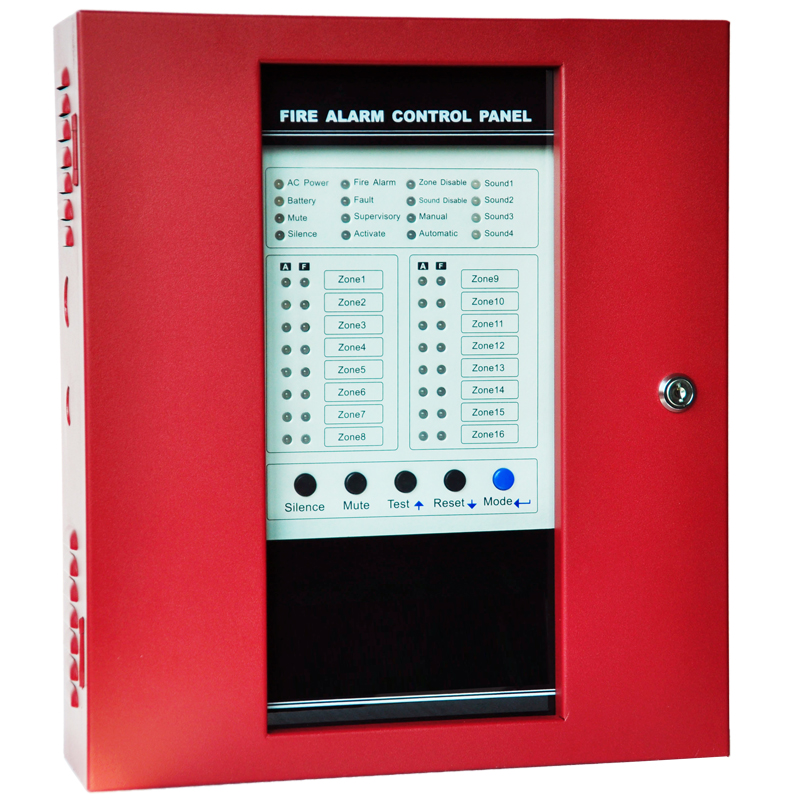

The CK1000 Series conventional fire alarm control panel is 24 volt, 4 to 16 zones, class B, conventional Fire Alarm Control Panel.
Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective Series can be used in a variety of low- to mid-sized applications.
The panel uses conventional input devices.The panel accepts water flow devices, two-wire smoke or heat detectors, four-wire smoke or heat detectors,call points and other normally-open contact devices. Outputs include four Notification Appliance Circuits(NAC, SOUND1-4), three standard Form-A relays (alarm, trouble and supervisory) and an EIA-485 port to interface with repeaters.The panel is field programmable via the panel keypad. It also supervises all wiring, AC voltage and battery level.
