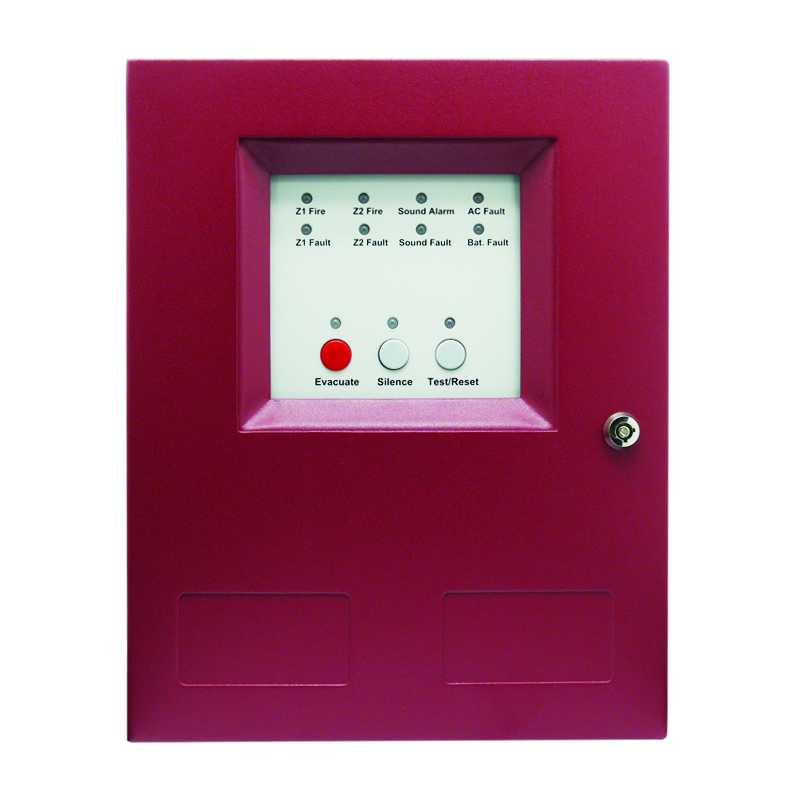

CK1002
适合小型建筑。
文字内容1
2 conventional input zones.
1notification appliance circuits (NAC) with built-in synchronization for ANSI 3.41and Gentex.
The panel comes with a 2 amp power supply.
Dedicated alarm and trouble relays.
1 RS485 can be able to connect the other panel.

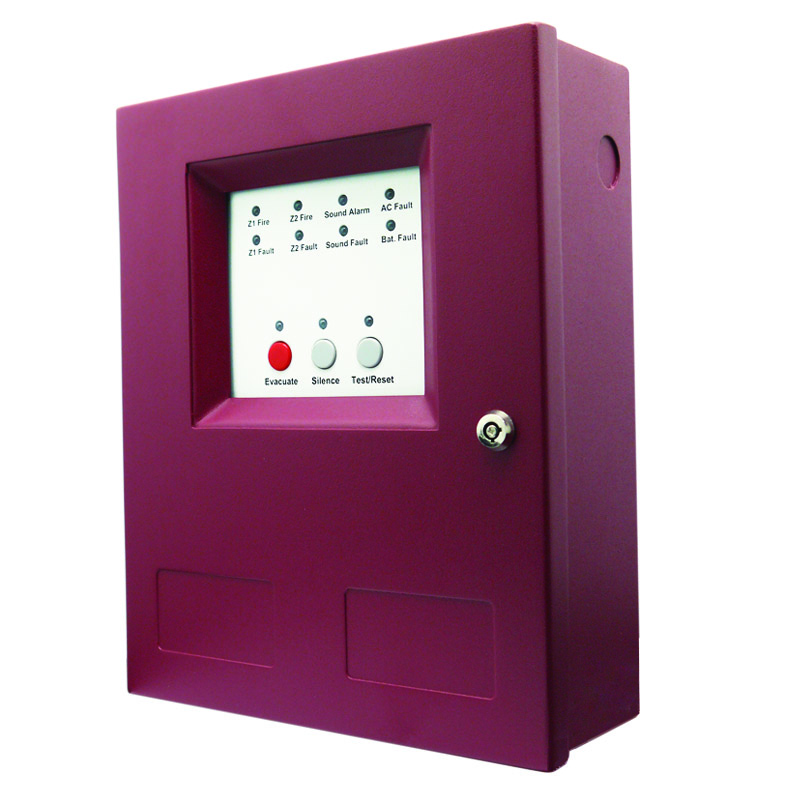

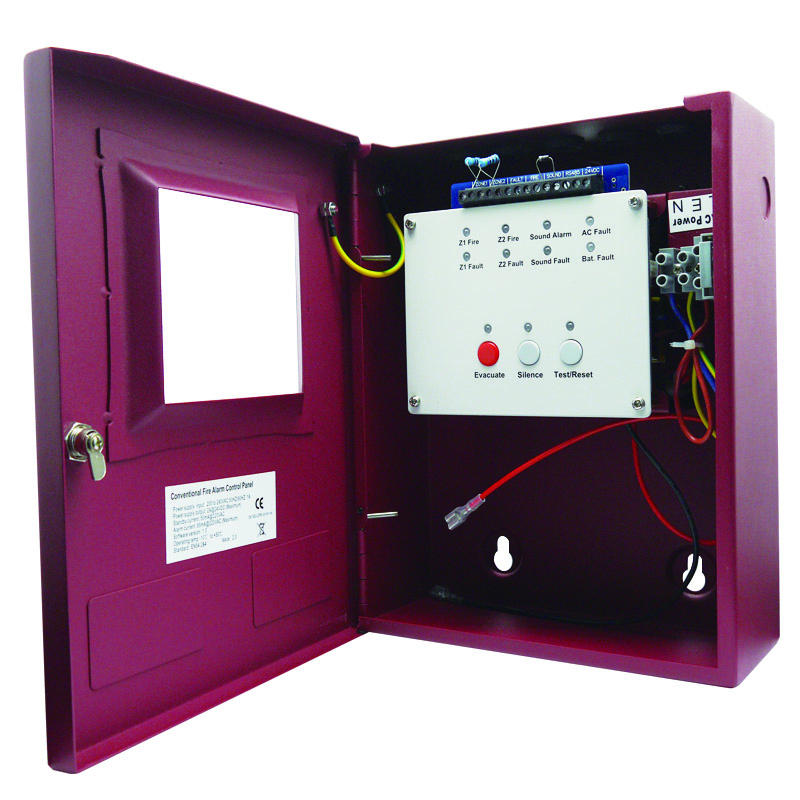

Housed in a 205mm W x 258mm H x 81mm D metal enclosure.
Enclosure supports two 12V, 4Ah backup batteries.
The panel can be used independently or connect by RS485.
文字内容2
|
Primary AC |
120VAC 50/60 Hz Power supply rating |
|
|
240VAC 50/60 Hz |
|
Power supply rating |
2 Amps @ 24VDC |
|
Maximum Battery Charging Current |
0.98 Amps @ 26VDC |
|
Initiating Device Circuits 2 Zones |
Alarm Zone 2 |
|
Normal Initiating Operating Voltage |
23VDC, Maximum 26VDC, regulated |
|
Normal Quiescent Current (normal status) |
<50mA |
|
Alarm Current (not include the others) |
<150 mA |
|
Short Circuit Initiating Current (per zone) |
35mA Maximum |
|
Maximum Initiating Resistance (per zone) |
10 ohms |
|
Initiating End-of-Line Resistor |
4K7 ohms, 1/2W 5% |
|
Standby Detector Current (per zone) |
4mA maximum |
|
Maximum Detector Count (per zone) |
30 detectors |
|
Initiating Cabling Type |
18AWG Twisted Shielded pair (14 – 18 AWG) |
|
Detector Base Impedance |
430 ohms |
|
Notification Appliance Circuits |
1 NACs, Special Application |
|
Maximum NAC Current Rating |
1 Amp maximum per circuit |
|
NAC Operating Voltage |
26VDC Nominal, 30VDC Maximum |
|
NAC End-of-line Resistor |
1N4007 Diode |
|
FAULT Relay rating |
2A & 30VAC, resistive |
|
Alarm( Auxiliary ) Relay rating |
2A & 30VAC, resistive |
